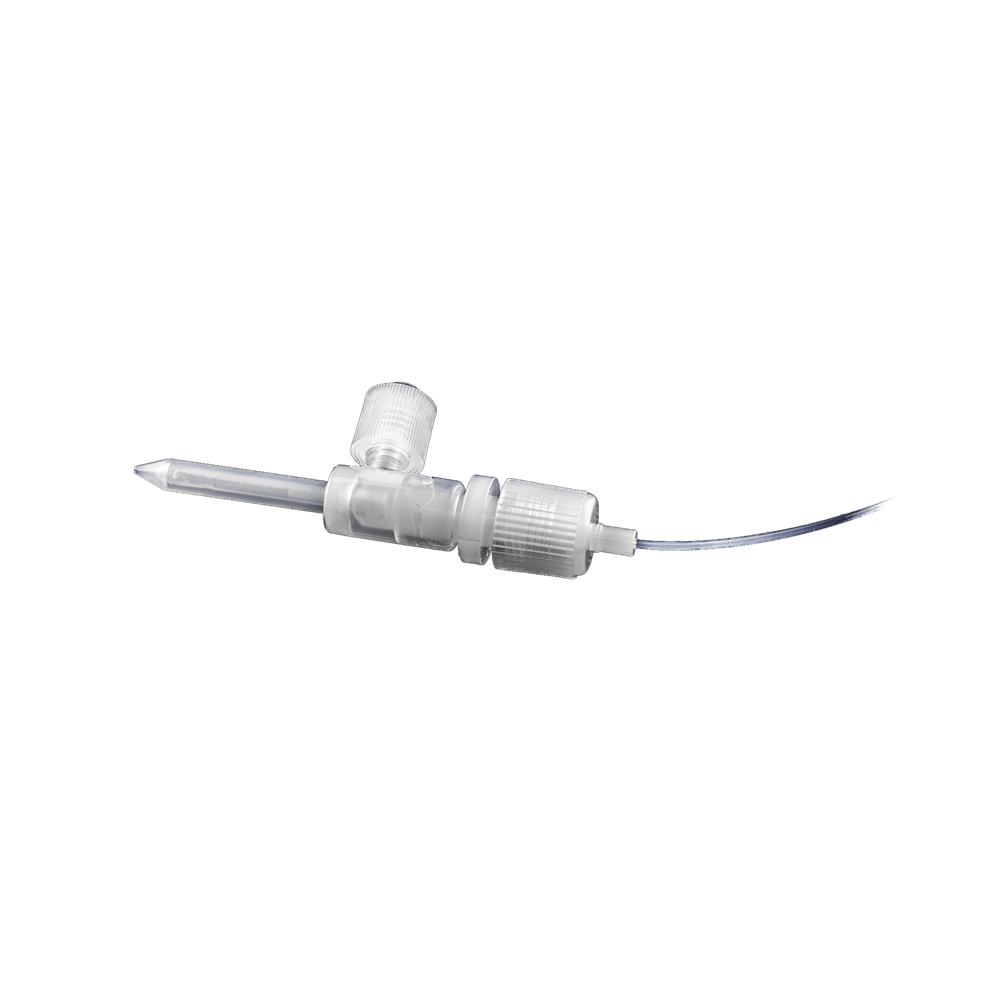

C35 Nebulizer
- Microconcentric PFA nebulizer with constant diameter uptake line/capillary
- High sensitivity, high efficiency
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- Free aspirates at 35 µl/min +/-7 µl/min
- Integrated 91 cm uptake line
- Gas line connection kit included. For connection to the PE NexION 2000, order part #830-052.
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$2,374.77
-
C35 Nebulizer with Carbon Probe (100 cm)
- Microconcentric PFA nebulizer with constant diameter uptake line/capillary
- High sensitivity, high efficiency
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- Free aspirates at 35 µL/min +/-7 µL/min
- Integrated 100 cm uptake line with encapsulated carbon probe
- Probe is 2.9 mm OD, 14.4 cm long, including encapsulation
- Fits ESI SC Micro autosampler and CETAC ASX 110/112 with new style arm (from Feb 2015)
- Gas line connection kit included. For connection to the PE NexION 2000, order part #830-052.
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$2,523.11
-
C35 Nebulizer with Carbon Probe for ESI SC2 Autosampler (100cm)
- Microconcentric PFA nebulizer with constant diameter uptake line/capillary
- High sensitivity, high efficiency
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- Free aspirates at 35 µL/min +/-7 µL/min
- Integrated 100 cm uptake line with encapsulated carbon probe
- Probe is 2.9 mm OD, 19.7 cm long, including encapsulation
- Fits ESI SC-2 and 2DX autosamplers (and larger format ESI autosamplers, but confirm uptake line is long enough)
- Gas line connection kit included. For connection to the PE NexION 2000, order part #830-052.
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$2,465.21
-
C50 Nebulizer for desolvators
- Microconcentric PFA nebulizer with constant diameter uptake line/capillary
- High sensitivity, high efficiency
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- Free aspirates at 50 µL/min +/-10 µL/min
- Assembled and tested at 110oC specifically for use with desolvators (CETAC Aridus, ESI Apex or Nu Instruments DSN-100)
- Note: Not for use with normal sample introduction system
- Integrated 100 cm uptake line with encapsulated carbon probe
- Probe is 3.2 mm OD, 14.4 cm long, including encapsulation
- Fits CETAC ASX 110/112 with old and new style arm
$1,885.41
-
C50 Nebulizer for Desolvators with ESI SC-2 Autosampler
- Microconcentric PFA nebulizer with constant diameter uptake line/capillary
- High sensitivity, high efficiency
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- Free aspirates at 50 µL/min +/-10 µL/min
- Assembled and tested at 110oC specifically for use with desolvators (CETAC Aridus, ESI Apex or Nu Instruments DSN-100)
- Note: Not for use with normal sample introduction system
- Integrated 100 cm uptake line with encapsulated carbon probe
- Probe is 2.9 mm OD, 19.7 cm long, including encapsulation
- Fits ESI SC-2 and 2DX autosamplers (and larger format ESI autosamplers, but confirm uptake line is long enough)
$2,158.97
-
C100 Nebulizer for desolvators
- Microconcentric PFA nebulizer with constant diameter uptake line/capillary
- High sensitivity, high efficiency
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- Free aspirates at 115 µL/min +/-17 µL/min
- Assembled and tested at 110oC specifically for use with desolvators (CETAC Aridus, ESI Apex or Nu Instruments DSN-100)
- Note: Not for use with normal sample introduction system
- Note: Not for use with normal sample introduction system
- Integrated 100 cm uptake line with encapsulated carbon probe
- Probe is 3.2 mm OD, 14.4 cm long, including encapsulation
- Fits CETAC ASX 110/112 with old and new style arm
$1,706.80
-
C100 Nebulizer for Desolvators with ESI SC-2 Autosampler
- Microconcentric PFA nebulizer with constant diameter uptake line/capillary
- High sensitivity, high efficiency
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- Free aspirates at 115 µl/min +/-17 µl/min
- Assembled and tested at 110oC specifically for use with desolvators (CETAC Aridus, ESI Apex or Nu Instruments DSN-100)
- Note: Not for use with normal sample introduction system
- Integrated 100 cm uptake line with encapsulated carbon probe for the ESI SC-2 and 2DX autosamplers
- Probe is 2.9 mm OD, 19.7 cm long, including encapsulation
- Probe OD 2.9 mm +/-0.2 mm
$1,656.25
-
C100 Nebulizer for Desolvators with ESI SC Micro Autosampler
- Microconcentric PFA nebulizer with constant diameter uptake line/capillary
- High sensitivity, high efficiency
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- Free aspirates at 115 µL/min +/-17 µL/min
- Assembled and tested at 110oC specifically for use with desolvators (CETAC Aridus, ESI Apex or Nu Instruments DSN-100)
- Note: Not for use with normal sample introduction system
- Integrated 100 cm uptake line with encapsulated carbon probe
- Probe is 2.9 mm OD, 14.4cm long, including encapsulation
- Fits ESI SC Micro and MicroDX autosamplers
$1,667.71
-
C200 Nebulizer for desolvators
- Microconcentric PFA nebulizer with constant diameter uptake line/capillary
- High sensitivity, high efficiency
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- Free aspirates at 210 µL/min +/-31 µL/min
- Assembled and tested at 110oC specifically for use with desolvators (CETAC Aridus, ESI Apex or Nu Instruments DSN-100)
- Note: Not for use with normal sample introduction system
- Note: Not for use with normal sample introduction system
- Integrated 100 cm uptake line with encapsulated carbon probe
- Probe is 3.2 mm OD, 14.4 cm long, including encapsulation
- Fits CETAC ASX 110/112 with old and new style arm
$1,705.37
-
C400d Nebulizer
- General purpose (non-semiconductor) PFA nebulizer for ICP-MS
- Removable uptake line (80 cm) with Savillex PFA zero dead volume connector
- High sensitivity with high solids capability - up to 15% TDS
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port. Includes a variety of gas line connectors
- Free aspirates but designed to be pumped
- Pumped flow rate range 0.2 - 0.7 mL/min
- Optimized at 1 SLPM Ar flow rate
- For use with the ESI FAST System, choose the C400e
- Gas line connection kit included. For connection to the PE NexION 2000, order part #830-052.
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,154.65
-
C700d Nebulizer
- General purpose PFA nebulizer for ICP-OES and MP-AES
- Removable uptake line (80 cm) with Savillex PFA zero dead volume connector
- High sensitivity with high solids capability - up to 25% TDS
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port. Includes a variety of gas line connectors
- Free aspirates but designed to be pumped
- Pumped flow rate range 0.7 - 1.2 mL/min
- Optimized at 0.6 SLPM Ar flow rate
- Gas line connection kit included. For connection to the PE NexION 2000, order part #830-052.
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,154.65
-
C400e Nebulizer
- IMPORTANT - For use only with the ESI FAST System - thread on body connects directly to ESI FAST connector. Uptake line and connector are NOT included
- To use in free aspiration mode or with a peri pump instead of the ESI FAST system, simply add a C250s uptake line e.g. 830-081, 830-082, 830-084, 830-086. All these uptake lines connect directly to the C400e body.
- General purpose (non-semiconductor) PFA nebulizer for ICP-MS
- High sensitivity with high solids capability - up to 15% TDS
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- C-Flow Gas Line Connection Kit Part 830-051 is included
- Free aspirates but designed to be pumped (flow rate range of 0.2 - 0.7 mL/min)
- Optimized at 1 SLPM Ar flow rate
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,170.40
-
C50s Nebulizer
- Microconcentric PFA nebulizer
- Ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection
- Same washout performance as an integrated uptake line
- 100 cm uptake line
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- Free aspirates at 50 µl/min +/-10 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order Part #830-052
- This nebulizer supersedes Part #800-1-005-01-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,850.95
-
C50s Nebulizer with Autosampler Probe (70cm)
- Microconcentric PFA nebulizer
- Ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection
- Same washout performance as an integrated uptake line
- 70 cm uptake line; comprised of ~60 cm of flexible uptake line and ~10 cm polyamide probe
- Encapsulated polyimide probe 2.8 mm OD, 10.2 cm long - compatible with Agilent I-AS autosampler only
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- Free aspirates at 50 µl/min +/-10 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included
- This nebulizer supersedes Part #800-1-005-02-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,927.79
-
C50s Nebulizer with Carbon Probe (100 cm)
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 100 cm uptake line, comprised of ~85 cm of flexible uptake line and ~15 cm carbon probe
- Encapsulated carbon probe 2.9 mm OD, 14.4 cm long, including encapsulation
- Fits ESI SC Micro autosampler and CETAC ASX 110/112 with new style arm (from Feb 2015)
- 6 mm OD body with 4 mm gas port
- Free aspirates at 50 µl/min +/-10 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order part #830-052.
- This nebulizer supersedes Part #800-1-005-04-00 and Part #800-1-005-06-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$2,227.14
-
C50s Nebulizer with Carbon Probe for ESI SC2 Autosampler (100 cm)
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 100 cm uptake line; comprised of ~80 cm of flexible uptake line and ~20 cm carbon probe
- Encapsulated carbon probe 2.9 mm OD, 19.7 cm long, including encapsulation
- Fits ESI SC-2 and 2DX autosamplers (and larger format ESI autosamplers, but confirm uptake line is long enough)
- 6 mm OD body with 4 mm gas port
- Free aspirates at 50 µl/min +/-10 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order Part #830-052.
- This nebulizer supersedes 800-1-005-08-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$2,281.17
-
C100s Nebulizer
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- 100 cm uptake line
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- Free aspirates at 100 µl/min +/-20 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order Part #830-052
- This nebulizer supersedes Part #800-1-010-01-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,604.03
-
C100s Nebulizer with Autosampler Probe (70 cm)
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 70 cm uptake line; comprised of ~60 cm of flexible uptake line and ~10 cm polyamide probe
- Encapsulated polyimide probe 2.8 mm OD, 10.2 cm long - compatible with Agilent I-AS autosampler only
- 6 mm OD body with 4 mm gas port
- Free aspirates at 100 µl/min +/-20 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included
- This nebulizer supersedes Part #800-1-010-02-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,727.47
-
C100s Nebulizer with Carbon Probe (100 cm)
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 100 cm uptake line; comprised of ~85 cm of flexible uptake line and ~15 cm carbon probe
- Encapsulated carbon probe is 2.9 mm OD, 14.4 cm long, including encapsulation
- Fits ESI SC Micro autosampler and CETAC ASX 110/112 with new style arm (from Feb 2015)
- 6 mm OD body with 4 mm gas port
- Free aspirates at 100 µl/min +/-20 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order Part #830-052
- This nebulizer supersedes Part #800-1-010-04-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,943.69
-
C100s Nebulizer with Carbon Probe for ESI SC2 Autosampler (100 cm)
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 100 cm uptake line; comprised of ~80 cm of flexible uptake line and ~20 cm carbon probe
- Encapsulated carbon probe 2.9 mm OD, 19.7 cm long, including encapsulation
- Fits ESI SC-2 and 2DX autosamplers (and larger format ESI autosamplers, but confirm uptake line is long enough)
- 6 mm OD body with 4 mm gas port
- Free aspirates at 100 µl/min +/-20 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order Part #830-052
- This nebulizer supersedes Part #800-1-010-08-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$2,239.19
-
C250s Nebulizer
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- 100 cm uptake line
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- Free aspirates at 250 µl/min +/-50 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order Part #830-052
- This nebulizer supersedes Part #800-1-020-01-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,604.03
-
C250s Nebulizer with Autosampler Probe (70 cm)
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 70 cm uptake line; comprised of ~60 cm of flexible uptake line and ~10 cm polyamide probe
- Encapsulated polyimide probe 2.8 mm OD, 10.2 cm long - compatible with Agilent I-AS autosampler only
- 6 mm OD body with 4 mm gas port
- Free aspirates at 250 µl/min +/-50 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included
- This nebulizer supersedes Part #800-1-020-02-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,725.65
-
C250s Nebulizer with Carbon Probe (100 cm)
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 100 cm uptake line; comprised of ~85 cm of flexible uptake line and ~15 cm carbon probe
- Encapsulated carbon probe is 2.9 mm OD, 14.4 cm long, including encapsulation
- Fits ESI SC Micro autosampler and CETAC ASX 110/112 with new style arm (from Feb. 2015)
- 6 mm OD body with 4 mm gas port
- Free aspirates at 250 µl/min +/-50 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order Part #830-052
- This nebulizer supersedes Part #800-1-020-04-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,943.69
-
C250s Nebulizer with Carbon Probe for ESI SC2 Autosampler (100 cm)
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 100 cm uptake line; comprised of ~80 cm of flexible uptake line and ~20 cm carbon probe
- Encapsulated carbon probe 2.9 mm OD, 19.7 cm long, including encapsulation
- Fits ESI SC-2 and 2DX autosamplers (and larger format ESI autosamplers, but confirm uptake line is long enough)
- 6 mm OD body with 4 mm gas port
- Free aspirates at 250 µl/min +/-50 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order part #830-052
- This nebulizer supersedes Part #800-1-020-08-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$2,239.19
-
X100 Nebulizer
- X-flow is designed to be pumped but free aspirates at ~100 µL/min with this uptake line
- Fits all Savillex Scott type spray chambers (and any 35 mm OD Scott type)
- Extreme resistance to clogging
- Only high purity PFA contacts the sample
- O‑ring free connections
- Interchangeable uptake line. Line ID determines free aspiration uptake rate
- Optional make-up gas port allows variation of total carrier gas flow while keeping nebulizer gas constant
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,131.90
-
X100 Nebulizer with Make Up Gas Port
- X-flow is designed to be pumped but free aspirates at ~100 µL/min with this uptake line
- Make-up gas port allows variation of total carrier gas flow while keeping nebulizer gas constant
- Fits all Savillex Scott type spray chambers (and any 35 mm OD Scott type)
- Extreme resistance to clogging
- Only high purity PFA contacts the sample
- O‑ring free connections
- Interchangeable uptake line. Line ID determines free aspiration uptake rate
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,237.50
-
X400 Nebulizer
- X-flow is designed to be pumped but free aspirates at ~400 µL/min with this uptake line
- Fits all Savillex Scott type spray chambers (and any 35 mm OD Scott type)
- Extreme resistance to clogging
- Only high purity PFA contacts the sample
- O‑ring free connections
- Interchangeable uptake line. Line ID determines free aspiration uptake rate
- Optional make-up gas port allows variation of total carrier gas flow while keeping nebulizer gas constant
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,138.98
-
X400 Nebulizer with Make Up Gas Port
- X-flow is designed to be pumped but free aspirates at ~400 µL/min with this uptake line
- Make-up gas port allows variation of total carrier gas flow while keeping nebulizer gas constant
- Fits all Savillex Scott type spray chambers (and any 35 mm OD Scott type)
- Extreme resistance to clogging
- Only high purity PFA contacts the sample
- O‑ring free connections
- Interchangeable uptake line. Line ID determines free aspiration uptake rate
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,187.93
-
X1000 Nebulizer
- X-flow is designed to be pumped but free aspirates at ~1000 µL/min with this uptake line
- Fits all Savillex Scott type spray chambers (and any 35 mm OD Scott type)
- Extreme resistance to clogging
- Only high purity PFA contacts the sample
- O‑ring free connections
- Interchangeable uptake line. Line ID determines free aspiration uptake rate
- Optional make-up gas port allows variation of total carrier gas flow while keeping nebulizer gas constant
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,141.69
-
PFA Cyclonic Spray Chamber, Untreated, without Exit Port
- Chamber only - requires an exit port/connector
- All-PFA blow molded construction. No surface treatment
- Only virgin, high purity grade PFA used
- Deep spoiler improves drainage and eliminates re-nebulization
- Accepts 6 mm OD nebulizers
- Insertion depth optimized for Savillex C-Flow nebulizers
- Threaded nebulizer port with PFA ferrule nut. No o-rings
- Recommended for ultratrace applications such as semiconductor ICP-MS
$1,271.49
-
PFA Cyclonic Spray Chamber, Treated, without Exit Port
- Chamber only - requires an exit port/connector
- All-PFA blow molded construction. Surface treated for enhanced sensitivity
- Only virgin, high purity grade PFA used
- Deep spoiler improves drainage and eliminates re-nebulization
- Accepts 6 mm OD nebulizers
- Insertion depth optimized for Savillex C-Flow nebulizers
- Threaded nebulizer port with PFA ferrule nut. No o-rings
- Recommended when maximum sensitivity is required – e.g. for ICP-OES and MP-AES
$1,256.00
-
Exit Port/Connector, 9 mm OD Tube, with Baffle
- All PFA construction
- Connects to: Agilent 700 Series and Varian Vista ICP-OES
- Part number 821-102 (no baffle version) is normally used for ICP-OES
$70.61
-
Exit Port/Connector, 9 mm OD Tube, without Baffle
- All PFA construction
- Compatible with both 820-01 and 820-02 PFA cyclonic spray chambers
- Connects to: Agilent 700 Series and Varian Vista ICP-OES
- This no baffle version is normally used for ICP-OES
$66.18
-
Exit Port/Connector, 12/5 Socket, with Baffle
- All PFA construction
- Compatible with both 820-01 and 820-02 PFA cyclonic spray chambers
- Connects to: Agilent 4x00 MP-AES plus ICP-OES that use 12/5 socket
- Part number 821-104 (no baffle version) is normally used for ICP-OES
$66.73
-
Exit Port/Connector, 12/5 Socket, without Baffle
- All PFA construction
- Compatible with both 820-01 and 820-02 PFA cyclonic spray chambers
- Connects to: Agilent 4x00 MP-AES plus ICP-OES that use 12/5 socket
- This no baffle version is normally used for ICP-OES
$67.38
-
Exit Port/Connector, 18-9 Socket, with Baffle
- All PFA construction
- Compatible with both 820-01 and 820-02 PFA cyclonic spray chambers
- Use with any ICP-OES that uses an 18/9 ball joint connector on the torch
- Part number 821-106 (no baffle version) is normally used with ICP-OES
$83.81
