C50s Nebulizer with Carbon Probe for ESI SC2 Autosampler (100 cm)
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 100 cm uptake line; comprised of ~80 cm of flexible uptake line and ~20 cm carbon probe
- Encapsulated carbon probe 2.9 mm OD, 19.7 cm long, including encapsulation
- Fits ESI SC-2 and 2DX autosamplers (and larger format ESI autosamplers, but confirm uptake line is long enough)
- 6 mm OD body with 4 mm gas port
- Free aspirates at 50 µl/min +/-10 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order Part #830-052.
- This nebulizer supersedes 800-1-005-08-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$2,281.17
-

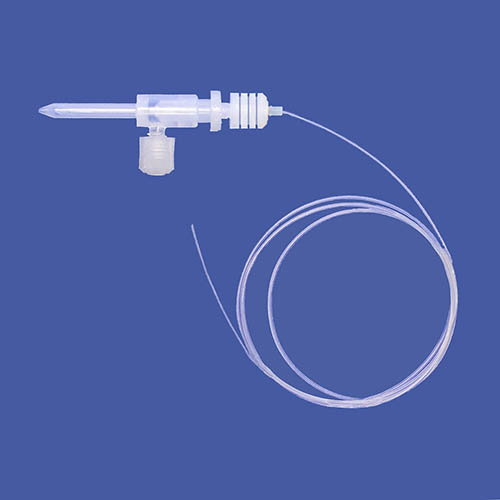

C100s Nebulizer
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- 100 cm uptake line
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- Free aspirates at 100 µl/min +/-20 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order Part #830-052
- This nebulizer supersedes Part #800-1-010-01-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,604.03
-
C100s Nebulizer with Autosampler Probe (70 cm)
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 70 cm uptake line; comprised of ~60 cm of flexible uptake line and ~10 cm polyamide probe
- Encapsulated polyimide probe 2.8 mm OD, 10.2 cm long - compatible with Agilent I-AS autosampler only
- 6 mm OD body with 4 mm gas port
- Free aspirates at 100 µl/min +/-20 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included
- This nebulizer supersedes Part #800-1-010-02-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,727.47
-

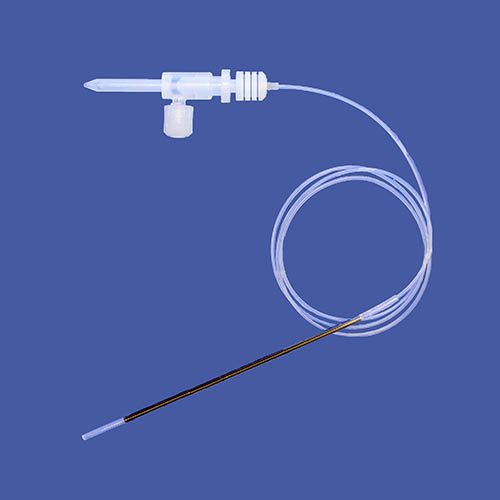

C100s Nebulizer with Carbon Probe (100 cm)
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 100 cm uptake line; comprised of ~85 cm of flexible uptake line and ~15 cm carbon probe
- Encapsulated carbon probe is 2.9 mm OD, 14.4 cm long, including encapsulation
- Fits ESI SC Micro autosampler and CETAC ASX 110/112 with new style arm (from Feb 2015)
- 6 mm OD body with 4 mm gas port
- Free aspirates at 100 µl/min +/-20 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order Part #830-052
- This nebulizer supersedes Part #800-1-010-04-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,943.69
-

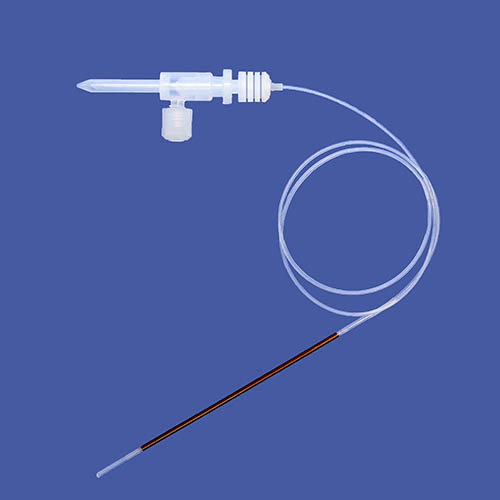

C100s Nebulizer with Carbon Probe for ESI SC2 Autosampler (100 cm)
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 100 cm uptake line; comprised of ~80 cm of flexible uptake line and ~20 cm carbon probe
- Encapsulated carbon probe 2.9 mm OD, 19.7 cm long, including encapsulation
- Fits ESI SC-2 and 2DX autosamplers (and larger format ESI autosamplers, but confirm uptake line is long enough)
- 6 mm OD body with 4 mm gas port
- Free aspirates at 100 µl/min +/-20 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order Part #830-052
- This nebulizer supersedes Part #800-1-010-08-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$2,239.19
-
C250s Nebulizer
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- 100 cm uptake line
- Robust - can be backflushed; no cleaning tools needed
- 6 mm OD body with 4 mm gas port
- Free aspirates at 250 µl/min +/-50 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order Part #830-052
- This nebulizer supersedes Part #800-1-020-01-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,604.03
-
C250s Nebulizer with Autosampler Probe (70 cm)
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 70 cm uptake line; comprised of ~60 cm of flexible uptake line and ~10 cm polyamide probe
- Encapsulated polyimide probe 2.8 mm OD, 10.2 cm long - compatible with Agilent I-AS autosampler only
- 6 mm OD body with 4 mm gas port
- Free aspirates at 250 µl/min +/-50 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included
- This nebulizer supersedes Part #800-1-020-02-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,725.65
-
C250s Nebulizer with Carbon Probe (100 cm)
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 100 cm uptake line; comprised of ~85 cm of flexible uptake line and ~15 cm carbon probe
- Encapsulated carbon probe is 2.9 mm OD, 14.4 cm long, including encapsulation
- Fits ESI SC Micro autosampler and CETAC ASX 110/112 with new style arm (from Feb. 2015)
- 6 mm OD body with 4 mm gas port
- Free aspirates at 250 µl/min +/-50 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order Part #830-052
- This nebulizer supersedes Part #800-1-020-04-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,943.69
-
C250s Nebulizer with Carbon Probe for ESI SC2 Autosampler (100 cm)
- Microconcentric PFA s-type nebulizer: ultra-high sensitivity in normal and cool plasma modes for semiconductor applications
- Demountable PFA uptake line with unique zero dead volume connection - same washout performance as an integrated uptake line
- Robust - can be backflushed; no cleaning tools needed
- 100 cm uptake line; comprised of ~80 cm of flexible uptake line and ~20 cm carbon probe
- Encapsulated carbon probe 2.9 mm OD, 19.7 cm long, including encapsulation
- Fits ESI SC-2 and 2DX autosamplers (and larger format ESI autosamplers, but confirm uptake line is long enough)
- 6 mm OD body with 4 mm gas port
- Free aspirates at 250 µl/min +/-50 µl/min – or can be pumped
- Use with supplied uptake line, or body connects directly to line from ESI FAST systems
- Gas line connection kit included. For connection to the PE NexION 2000, order part #830-052
- This nebulizer supersedes Part #800-1-020-08-00
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$2,239.19
-

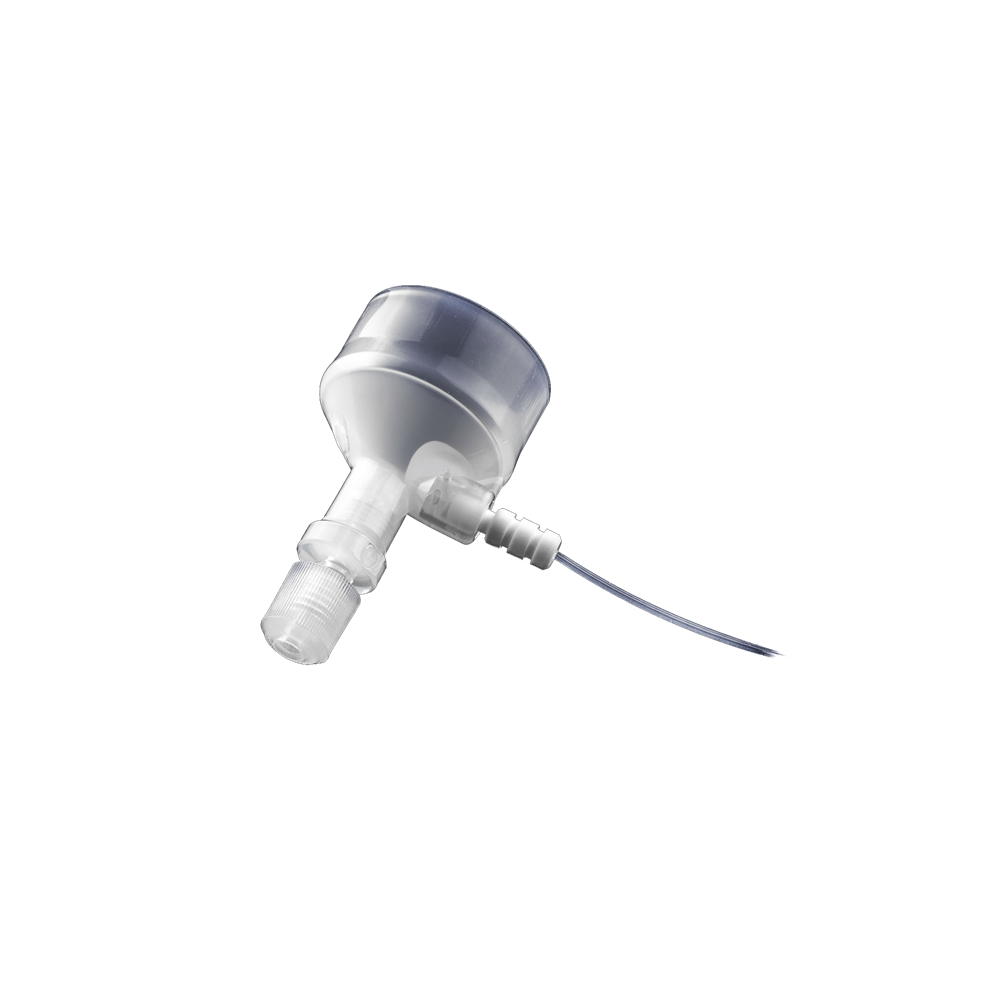

X100 Nebulizer
- X-flow is designed to be pumped but free aspirates at ~100 µL/min with this uptake line
- Fits all Savillex Scott type spray chambers (and any 35 mm OD Scott type)
- Extreme resistance to clogging
- Only high purity PFA contacts the sample
- O‑ring free connections
- Interchangeable uptake line. Line ID determines free aspiration uptake rate
- Optional make-up gas port allows variation of total carrier gas flow while keeping nebulizer gas constant
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,131.90
-

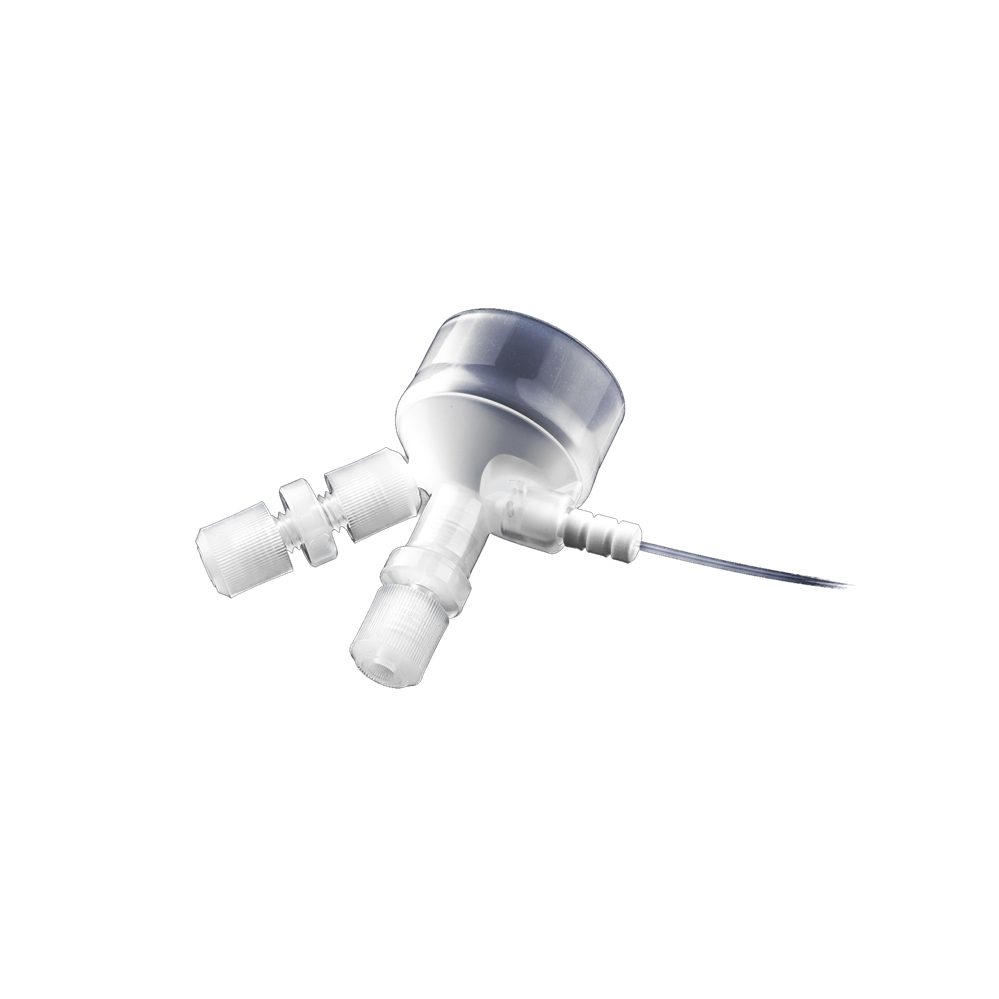

X100 Nebulizer with Make Up Gas Port
- X-flow is designed to be pumped but free aspirates at ~100 µL/min with this uptake line
- Make-up gas port allows variation of total carrier gas flow while keeping nebulizer gas constant
- Fits all Savillex Scott type spray chambers (and any 35 mm OD Scott type)
- Extreme resistance to clogging
- Only high purity PFA contacts the sample
- O‑ring free connections
- Interchangeable uptake line. Line ID determines free aspiration uptake rate
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,237.50
-
X400 Nebulizer
- X-flow is designed to be pumped but free aspirates at ~400 µL/min with this uptake line
- Fits all Savillex Scott type spray chambers (and any 35 mm OD Scott type)
- Extreme resistance to clogging
- Only high purity PFA contacts the sample
- O‑ring free connections
- Interchangeable uptake line. Line ID determines free aspiration uptake rate
- Optional make-up gas port allows variation of total carrier gas flow while keeping nebulizer gas constant
-
Note: This nebulizer is designed for use only with standard sample introduction systems (ambient temp or chilled spray chamber). Where a desolvator is used, a nebulizer type “Nebulizer for Desolvators” must be selected.
$1,138.98
