Purillex® 2D Bag Assemblies for Bioprocessing

Get a complimentary sample or connect with a specialist Browse Products

Your Bag. Your Way. No Limits.

Finding a high-performing single-use bag assembly with the versatility and scalability your process demands shouldn’t be a challenge.

Introducing Purillex® 2D Bag Assemblies from Savillex—engineered for bioprocessing and therapeutic teams who require reliable, flexible, and leak-free single-use solutions.

Purillex® 2D Bag Assemblies are high-performance single-use bioprocess bag systems engineered for reliable sterile fluid handling, storage, and transfer. Designed for upstream, downstream, fill/finish, and analytical workflows, these customizable 2D bioprocess bags combine maximum product recovery with rigorous quality validation.

Manufactured under an ISO 9001–certified quality system in a Class 7 cleanroom, every assembly undergoes 100% seal-integrity testing prior to release—ensuring leak-free confidence in every run.

Because every last drop matters—every time.

Why Choose Purillex® 2D Bioprocess Bags?

Biopharmaceutical and therapeutic manufacturing environments demand performance, flexibility, and compliance. Purillex 2D Bag Assemblies are built to eliminate common limitations found in traditional single-use bag assemblies, including:

• Leakage risk
• Poor drainability
• Limited connector compatibility
• Custom lead-time delays

Each assembly features a polyethylene canoe port and a tapered-edge chamber design to reduce hold-up volume and maximize valuable product recovery.

Because every last drop matters—every time.

Engineered for Maximum Product Recovery

Unlike standard sterile fluid transfer bags, Purillex 2D bags are designed for optimized drainability:

• Canoe port geometry improves fluid evacuation
• Tapered-edge construction reduces residual volume
• Enhanced weld integrity supports consistent flow performance

These design features help minimize product loss during media preparation, bioreactor feed, intermediate hold, chromatography feed, and final product transfer.

Customizable Single-Use Bag Assemblies

Purillex 2D Bag Assemblies provide scalable configuration without complexity.

More than 80 off-the-shelf configuration combinations are available, with additional custom options—including 3D formats and volumes up to 200 L—available upon request.

Available Configuration Options

Bag Volumes:

• 25 mL to 50 L standard
• Custom sizes available

Tubing Materials:

• AdvantaFlex® TPE (weldable)
• AdvantaSil® silicone
• Additional tubing options available

Connector Types:

• MPC
• MPX
• Luer (male/female)
• AseptiQuik® G
• Sanitary tri-clamp
• Customer-specified connectors

This vendor-agnostic compatibility enables seamless integration into existing bioprocessing systems without additional welding steps.

Film Technology: Renolit 9101 Medical-Grade Construction

Purillex 2D bioprocess bags are constructed from Renolit 9101, a five-layer medical-grade polyethylene/EVOH film engineered for durability and barrier protection.

Key film properties:

• ULDPE inner and outer layers
• EVOH barrier for oxygen and moisture protection
• 97% clarity for visual inspection
• Low-temperature durability below –45 °C
• Low extractables profile

This advanced multilayer film supports demanding pharmaceutical and biologics manufacturing environments.

Sterilization and Regulatory Compliance

Purillex 2D Bag Assemblies are sterilized using validated:

• E-beam irradiation
• Gamma irradiation (up to 50 kGy depending on tubing selection)

All sterilization processes are performed in accordance with ISO 11137 standards.

These single-use bag systems support compliance with:

• USP <661> Plastic Packaging Systems
• USP <665> Plastic Components Used to Manufacture Drug Products
• USP <788> Particulate Matter in Injections

Certificates of Conformance and extractables data packages are available upon request.

100% Seal-Integrity Testing for Leak-Free Performance

Every Purillex 2D Bag Assembly undergoes 100% seal-integrity testing using Z-Axis Z8 high-sensitivity air leak detection equipment.

Testing verifies:

• Chamber weld integrity
• Port seals
• Tubing-to-connector interfaces

This comprehensive validation ensures airtight performance prior to shipment—reducing contamination risk and protecting batch integrity.

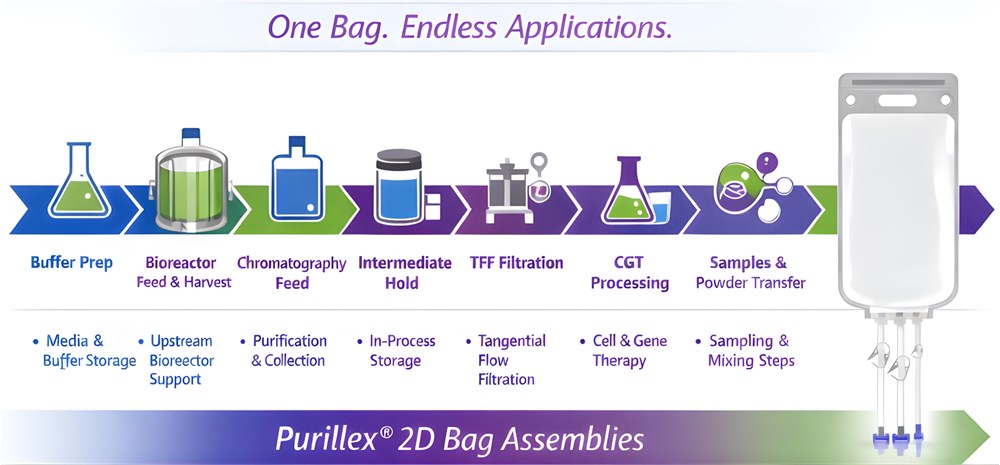

Applications for 2D Bioprocess Bag Assemblies

Purillex 2D Bag Assemblies are optimized for:

• Buffer and media preparation
• Bioreactor feed and harvest
• Intermediate product hold
• Chromatography feed
• Sampling
• Final product hold
• Research and pilot-scale workflows

These sterile fluid transfer bags provide a high-integrity alternative to rigid systems without sacrificing clarity, flexibility, or scalability.

Made in the USA

All Purillex 2D Bag Assemblies are manufactured in the United States under controlled cleanroom conditions, ensuring traceability, quality control, and consistent performance.

Request a Complimentary 2D Bag Sample

Experience the performance of Purillex 2D Bag Assemblies within your workflow.

👉 Click here to request a complimentary sample or connect with our team.

👉 Click here to download our data sheet.

👉 Click here to view our 2D Bag Assembly FAQs.
