ICP Sample Intro
ICP Sample Intro
-
Exit Port/Connector, 18-9 Socket, without Baffle
- All PFA construction
- Compatible with both 820-01 and 820-02 PFA cyclonic spray chambers
- Use with any ICP-OES that uses an 18/9 ball joint connector on the torch
- This no baffle version is normally used with ICP-OES
$71.79
-
Exit Port/Connector, Thermo Element2/Neptune ICP-MS, with Baffle
- All PFA construction
- Compatible with both 820-01 and 820-02 PFA cyclonic spray chambers
- Jogged connector tube raises chamber to clear sample intro area deck
- Two make-up gas ports (accept 1/8 inch OD gas line)
- Two cap nuts and two ferrule nuts provided, so connector can be used one or two make-up gases (or no make-up gas)
- Requires Savillex inert torch (851-011-100713) and injector assembly (851-011-100708 or 851-011-100709)
- Can also be used with ESI inert torch – connect directly to torch base
- Note: Please allow a 3-4 week lead-time for this product
$318.73
-
Exit Port/Connector, Thermo iCAP ICP-OES Radial, without Baffle
- All PFA construction
- Compatible with both 820-01 and 820-02 PFA cyclonic spray chambers
- Connects to: Thermo iCAP ICP-OES 6000/7000 radial type only - does not fit Duo version
- Connects direct to standard Thermo torch base
$227.50
-
Exit Port/Connector, Spectro Arcos Radial without Baffle
- All PFA construction
- Compatible with both 820-01 and 820-02 PFA cyclonic spray chambers
- Connects to Spectro ICP-OES, radial type only, with ESI inert torch
- Requires ESI inert torch for Spectro ICP-OES. Connects directly to ESI inert torch base
- Choose 821-105 if Spectro demountable torch is used
$318.07
-
Exit port/connector for Thermo iCAP Duo ICP-OES, without baffle
- All PFA construction
- Compatible with both 820-01 and 820-02 PFA cyclonic spray chambers (820-02 is recommended)
- Connects to: Thermo iCAP ICP-OES Duo type only (for radial version use 821-111)
- Connects direct to standard Thermo torch base
$265.00
-
Exit Port/Connector for Spectro Arcos II with GE D-Type Torch with Baffle
- All PFA construction
- Compatible with both 820-01 and 820-02 PFA cyclonic spray chambers (820-02 is recommended)
- Connects to Spectro Arcos II ICP-OES (but only when the Glass Expansion (GE) D-Type torch is used)
- Connects direct to GE D-Type torch base
$265.00
-
400 µl X-Flow Uptake Line Assembly
- Interchangeable uptake line (70 cm ) for X-Flow nebulizer
- Push fit, zero dead volume fitting
- X-flow is designed to be pumped but free aspirates at 400 uL/min with this uptake line
$91.14
-
1 ml X-Flow Uptake Line Assembly
- Interchangeable uptake line (70 cm) for X-Flow nebulizer
- Push fit, zero dead volume fitting
- X-flow is designed to be pumped but fre aspirates at 1mL/min with this uptake line
$91.14
-
Replacement Uptake Line for C-Flow "d-type" Nebulizers
- Removable uptake line, 0.3 mm ID
- 80 cm length
- Savillex PFA zero dead volume connector
- For d-type (i.e. C-Flow 400d or 700d)) nebulizer bodies only
$167.76
-
C-Flow Gas Line Connection Kit
The C-Flow features a reliable and secure threaded connector that accepts 4 mm OD nylon or PTFE gas line. However, for easy connection to the various gas lines found in different ICP-OES and ICP-MS instruments, a gas connection kit is included with each C-Flow (except C-Flow for Aridus II). The connection kit includes:
- One meter of 4 mm OD PTFE gas line (connects to the threaded connector on the C-Flow body)
- A Festo 4 mm/6 mm push fit connector (connects the supplied 4mm OD PTFE gas line to the 6 mm OD nylon gas line used in some instruments)
- A barbed connector. The plain end of this connector connects to the threaded connector on the C-Flow body. The barbed end accepts Tygon gas line, which is commonly used on ICP-OES instruments.
- Note: the PE NexION 2000 serice icp-MS uses 1/8" gas line. To connect a C-Flow to a NexION 2000, please order part #830-052.
$106.59
-

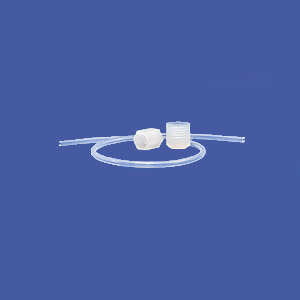

C-Flow Gas Line Connection Kit - PE NexION 2000
The C-Flow features a reliable and secure threaded connector. Most ICP-OES and ICP-MS instruments use 4mm or 6mm OD gas line that the standard C-Flow Gas Line Connection Kit is designed for. However the PE NexION 2000 series ICP-MS uses a 1/8in fitting on the nebulizer gas supply. This kit connects the 1/8in gas supply directly to the C-Flow. The kit includes:
- One foot of 1/8in OD PFA gas line
- A 1/8in PVDF nut to connect to the NexION gas suppply
- A PFA nut to connect to the C-Flow body
$52.42
-

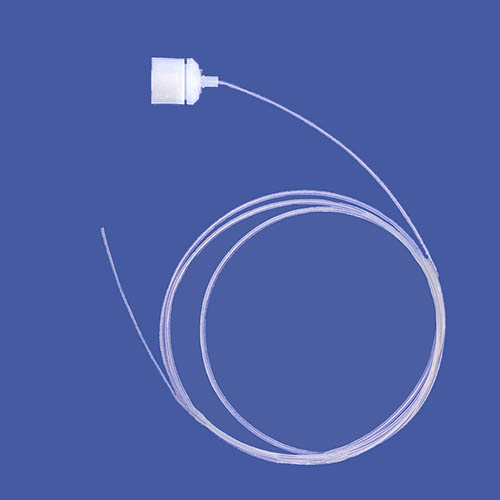

Uptake Line for C50s Nebulizer
- For s-type nebulizer bodies
- Unique zero dead volume connection
- 100 cm PFA uptake line - no probe
- Nebulizer uptake rate not guaranteed to be within original specification when uptake line is changed
$171.31
